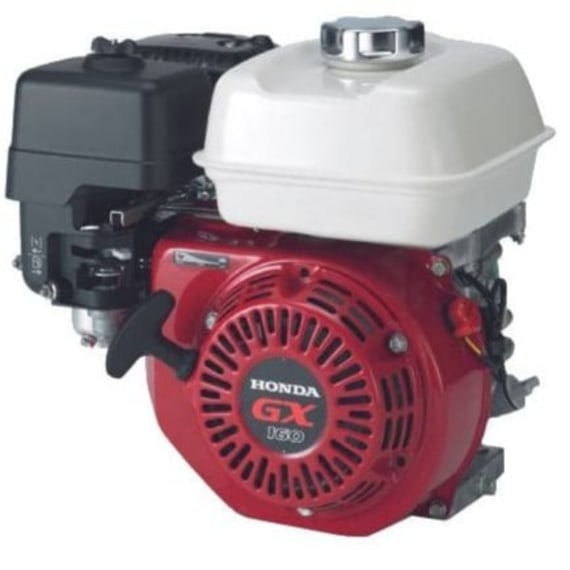

Honda Engine (2:1 reduction)

Replacement Part Description: Genuine Honda part number GX160UT2X-LX4  - Engine 2:1 reduction

Engine type: 4-stroke single cylinder
                      OHV petrol engine
                      25° inclined cylinder
                      Horizontal shaft
Cylinder sleeve type: Cast iron sleeve
Bore x Stroke: 68 x 45 mm
Displacement: 163 cm³
Compression ratio: 9.0 : 1
Net power: 3.6 kW ( 4.8 HP ) / 3600 rpm
Cont. rated power: 2.5 kW ( 3.4 HP ) / 3000 rpm
                                 2.9 kW ( 3.9 HP ) / 3600 rpm
Max. net torque: 10.3 Nm ( 1.05 kgfm ) / 2500 rpm
Fuel tank capacity: 3.1 Litre
Fuel cons. at cont. rated power: 1.4 L/h - 3600 rpm
Engine oil capacity: 0.6 Litre
Lubrication system: Forced splash
Recommended oil: APISJ-SAE 10W30
Ignition system: Ignition coil with fixed timing, Shut off by connecting the primary coil to ground
Fuel system: Float carburettor
Governor: Mechanical centrifugal
Allowed ambient temperature: Between -15°C and +40°C
Allowed altitude: Between 0 and 1500 m, above 1500 m replace the main jet
Maximum inclination: Maximum 20° in every direction
PTO shaft rotation: Counter clockwise from PTO side
Shaft type: 1/2 reduction
Shaft diameter: 20 mm
Shaft thread Int: M8 x 1,25
PTO key type: 5x5x33
Choke type: Lever
Throttle control: Lever / remote rod
Air cleaner: Dual
Oil alert: Yes
Electric starter: No
Charge coil: No
Lamp coil: No
Control box: No
Reduction: 1/2
Muffler: Standard
Fuel filter: No
Deflector kit: No
Spark arrestor: No
Supplied loose Key: # 5x33
RPM: 3900 +/-100
